Submarsible body turning machine
NTC-SB2590
This Special Purpose Machine design for Submersible Body Turning. It is also possible to transform in standard CNC turning machine.
Core Advantages
- Lower cycle time
- Roller Type Guideways
- One Setup Operation
- Operator Friendly Design
- Customization Possible
- Vibration free Structure
- Possible to convert in Standard turing application
STANDARD FETURE
- Cartridge type Spindle
- 90° Tiltable Operator Panel
- Full auto Clamp
- Wired Electronic Hand Wheel (MPG)
- Hydraulic Unit with 1.5 HP Motor
- Centralized & Programmable Lubricating system
- High-Pressure Auto Coolant system
OPTIONAL FETURE
- Chip/Scrap Conveyor
- Auto door
- Stabilizer
- All possible customization
NTC-SB2590 Specification
| Specification | Unit | NTC-SB2590 |
| CAPACITY | ||
| Maximum Turning Dia | mm | 250 |
| Part/Job/Component Length | mm | 900 |
| X Axis Travel | mm | 175 |
| Z Axis Travel | mm | 1200 |
| 3rd Hydraulic Axis Travel | mm | 250 |
| Rapid (X & Z Axis) | m/min | 15 |
| SLIDE | ||
| Z Axis Ball Screw | mm | 40x10 |
| Z Axis Guideways | mm | 35 |
| X Axis Ball Screw | mm | 32x10 |
| X Axis Guideways | mm | 35 |
| SPINDLE | ||
| Spindle Motor Power | kW | 5.5 |
| Number of Spindle | - | 2 |
| Spindle Nose | - | A2-6 + A2-4 |
| Spindle Speed Range | rpm | 100-2000 |
| OD Collet | mm | 50 & 70 OD |
| TURRET | ||
| No. of Station | - | 8 |
| Max Boring Bar Diameter | mm | 40 |
| Tool Size | mm | 25x25 |
| ACCURACY | ||
| Positioning Accuracy | mm | 0.015 |
| Repeatability | mm | 0.008 |
| OTHER DATA | ||
| Height | mm | 1900 |
| Floor Size (LxW) | mm | 3300x1500 |
| Weight (approx) | kg | 2600 |
Components

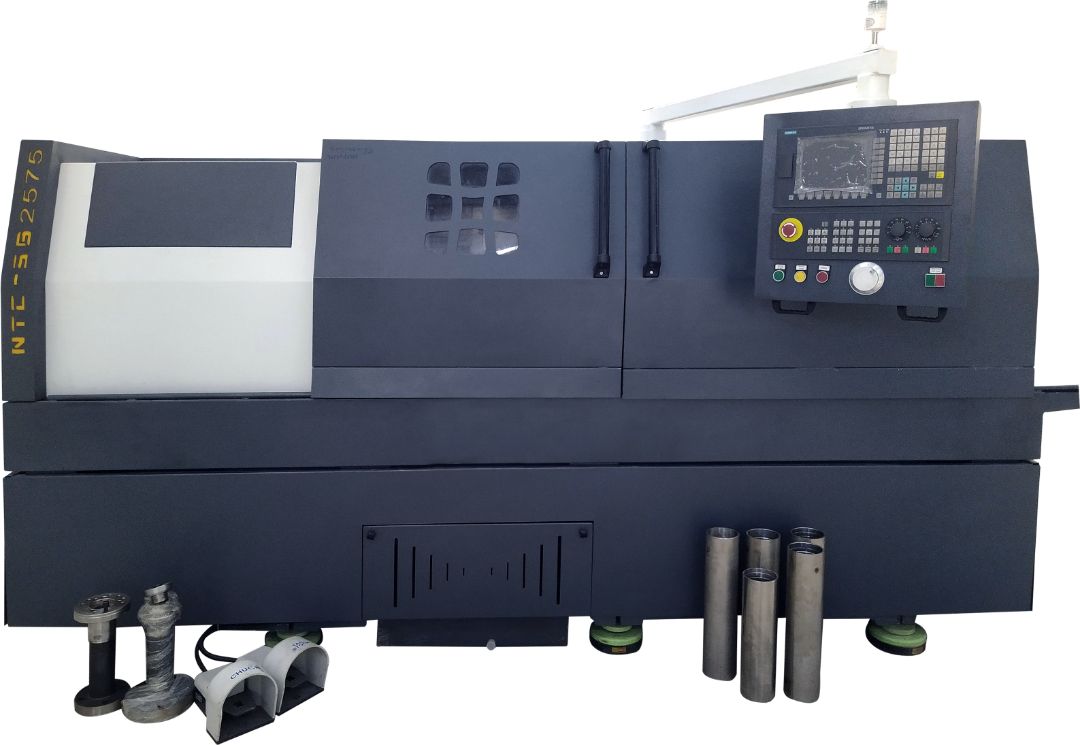

This photo for better understanding. we made many more parts/components...
